Yas Crusher Tshuab
Cov lus qhia
| Yam | ib yam | PC3280 | PC4280 | PC42100 | PC52100 | 52120 | PC66120 | PC66160 |
| Pub Qhib | Lub hli | 800 * 600 | 800 * 700 | 1000 * 700 | 1000 * 1000 | 1200 * 1000 | 1200 * 1000 | 1600 * 1000 |
| Rotor taub | Lub hli | 320 | 420 | 420 | 520 | 520 | 660 | 660 |
| Rotor ceev | r / min | 595 | 526 | 526 | 462 | 462 | 462 | 414 |
| Lub cev muaj zog | Kw | 22 | 37 | 45 | 55 | 75 | 90 | 132 |
| Tus naj npawb ntawm rooror rab riam | Pcs | 6 | 6 | 6 | 6 | 6 | 10 | 10 |
| Tus naj npawb ntawm Stator Riam | Pcs | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Hwj Heev Hwj Huam | Kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Tshuab Ntev | Lub hli | 1600 | 1800 | 1800 | 2100 | 2100 | 2450 | 2450 |
| Tshuab Dav | Lub hli | 1650 | 1660 | 1900 | 2050 | 2250 | 2300 | 2800 |
| Tshuab Qhov Siab | Lub hli | 1800 | 2450 | 2450 | 3000 | 3000 | 4300 | 4300 |
PC Series Yas Crusher Tshuab Rau Kev Sib Tsoo Yas Kav
PC series SMRAP SIB TSOO CRARRERS tau dav siv nyob rau hauv loj txo cov profiles, kav dej, ntawv qhia, cov ntawv qhia loj loj, thiab lwm yam. Rau qhov loj crushing muaj peev xwm, tuaj yeem nruab nrog pub mis conveyor, xuas nrig, cia rau hauv thiab hmoov av tshem tawm system.

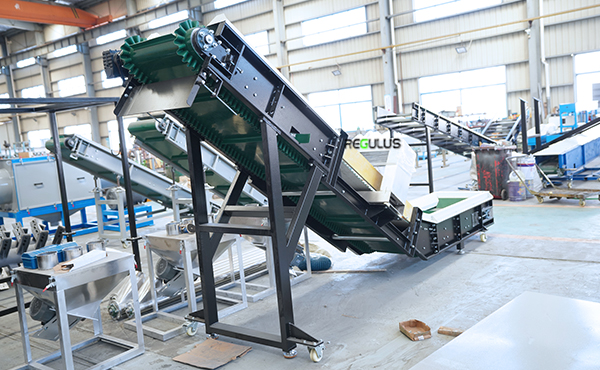

Siv Tshuab Conveyor
Cov ntaub pua plag yas yog conveyed rau hauv lub crusher ntawm txoj siv siv pub mis; Cov cuab yeej adopts ABBB / SCHNEIDE NROTENCY converter rau zaus tswj. Txoj kev nrawm nrawm ntawm txoj siv siv pub mis tau txuas nrog lub fullness ntawm lub crusher, thiab kev ceev ntawm tus conveyor siv tau hloov kho raws li qhov tam sim no ntawm cov crusher.
Ntes Hlau
Kev xaiv ferrous hlau tas mus li steel nplaum siv lossis hlau ntes tuaj yeem tiv thaiv cov khoom lag luam hlau tshwj xeeb los ntawm kev thauj khoom ntawm cov hniav ntawm cov crusher.
Rotor
Hnyav-vane-vane-ve rotor, Welded steel qauv, nrog cov riam hlau, v-puab lub kaum mounting, thiab x-puab tej xim. Qhov txuas ntxiv ntawm lub rotor tuaj yeem nruab nrog tus tswv xeev log. Cov khoom siv tau hloov kho cov cuab yeej me me rau hauv qab ntawm cov cuab yeej hloov.
Rab riam tuaj
Riam cov khoom siv: DC53 siab dua hardness (62-64 hrc) dua d2 / sKd11 tom qab kev kho cua sov; Ob zaug nyuaj ntawm D2 / SKD11 nrog cov kev coj zoo dua; Muaj kev qaug zog ntau zog ua kom muaj zog piv rau D2 / SKD11.
Crushing Chamber
Lub crushing Chamber yog welded nrog 40mm ultra-siab hardness steel phaj, uas yog hnav-resistant, corrosion-resistant, suab nrov, thiab muaj lub neej kev pab ntau dua.
HYDRAUYyim CAV
Qhib lub pob zeb crushing lub cev, hloov cov cuab yeej, thiab siv nws rau kev tshuaj xyuas
