PE PP PET zaj duab xis compaction warehouse seem recycling thiab granulation ntau lawm kab

Lus piav qhia luv luv:

PE PP PET zaj duab xis compaction rau hauv recycling thiab granulation kab

Zaj duab xis rov siv dua

Xa email rau peb

Product Detail

Khoom cim npe

PP PE PET BOPP compaction warehouse tau txais dej-txuag nplhaib plastering granulation kab

Specifications

^{Target Recycled Materials}	HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS
^{Qhov System Composition}	Siv Conveyor, Txiav Compactor, Ib Ntsia Hlau Extruder, Lim,Pelletizer, Cov Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cuab Yeej Cua Txias Dej Txias Dej Txias Dej Txias Dej Txias Ntug Dej Txias Conveyor Ntxuam, Cov Khoom Siv Silo.
Khoom siv ntawm Screw	38CrMoAlA (SACM-645), Bimetal (Yeem)
L/D ntawm Screw	28/1, 30/1, 33/1, (Raws li cov yam ntxwv ntawm kev rov ua dua tshiab)
Lub rhaub dej kub	Ceramic rhaub los yog Far-infrared rhaub
Txias ntawm Barrel	Cua txias ntawm kiv cua los ntawm blowers
Hom Pelletizing	Dej-ntiv nplhaib pelletizing / dej-strands pelletizing / Hauv dej pelletizing
Kev Pabcuam	project tsim, Hoobkas tsim, installation thiab pom zoo, commissioning
Tshuab Qauv	Compactor			L/D	Ib leeg ntsia hlau Extruder
	Ntim	Lub cev muaj zog	Ntsia Hlau Diameter		Extruder lub cev muaj zog	Tso zis muaj peev xwm
	(liter)	(kw)	(mm)		(kw)	(kg / h)
XY-85	350	37	85	33	55	150-250
XYOO - 100	500	55	100	33	90	250-350
XYOO - 130	850	90	130	33	132	450-550
XYI-160	1100	110-132 : kuv	160	33	185	650-800 Nws
XYI-180	1500	185	180	33	250-280 : kuv	900-1100 Nws

Cutter Compactor Yas Recycling Pelletizing System

Lub series compacting thiab pelletizing system ua ke muaj nuj nqi ntawm crushing, compacting, plasticization thiab pelletizing rau ib kauj ruam.Siv rau hauv cov txheej txheem plastics recyclng thiab pelletizing.ACSH TM system yog kev txhim khu kev qha thiab kev ua haujlwm zoo rau cov yas zaj duab xis, raffias, filaments, hnab, woven hnab thiab cov ntaub ntawv foaming repelletizing.Lower peev rau lub tshuab ua haujlwm siab.Nws tuaj yeem muab cov zis ntau dua tab sis nrog qis zog siv ption.Daim ntawv thov: PE, PP, PS, ABS, XPS, EPS, PVB.

Pub

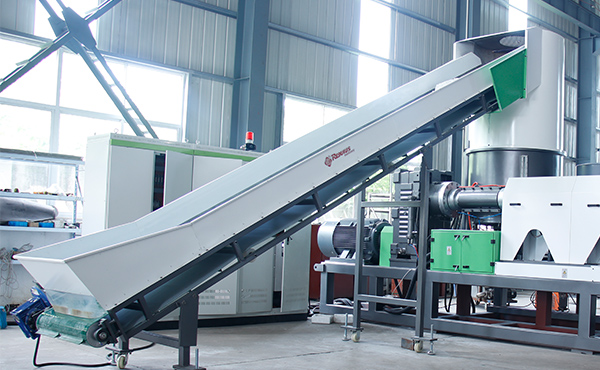

Raws li tus qauv tsim, cov khoom siv yas xws li zaj duab xis, filament, raffias xa mus rau hauv chav tsev compacting los ntawm txoj siv conveyor;los tuav rolls 'scrapers, yob hauling tawm ntaus ntawv yog ib qho kev xaiv pub mis.Lub cev muaj zog tsav ntawm txoj siv conveyor thiab cov cuab yeej thauj khoom koom tes nrog inverter.Pub ceev ntawm conveyor siv los yog yob hauling tawm yog tag nrho tsis siv neeg raws li tag nrho cov compactor chav tsev.

CRUSHING THIAB COMPACTING

Compactor yog nruab nrog cua tso pa tawm.Nrog rau kev ua haujlwm ntawm rotor riam thiab stator riam nyob rau hauv qab ntawm compactor, qhov kub ntawm compactor thiab cov khoom yuav maj mam nce tom qab txiav thiab kev sib txhuam, thiab cov ya raws thiab plua plav rau saum npoo ntawm raw khoom yuav ntab mus rau sab saum toj ntawm compactor.Cov cuab yeej siv tau zoo tshem tawm cov dej noo thiab plua plav, uas yuav zam tsis txhob siv lub zog ntxiv los daws cov dej noo.This compactor combines pre-heating, pre-qhuav thiab loj txo kom ceev thiab ruaj khov.kev noj zaub mov.

Rotatory Blades Ntawm Compactor

Lub rotating hniav thiab tsau hniav txiav cov khoom rau hauv me me flakes.Kev sib txhuam cua sov tsim los ntawm kev kub ceev rotating hniav yuav per-kub thiab shrink lub flakes.

Ib leeg ntsia hlau Extruder

Peb tsim tshwj xeeb ib leeg ntsia hlau extruder maj mam plasticizes thiab homogenizes cov ntaub ntawv.Peb ob-hlau extruder muaj kev tiv thaiv corrosion zoo, hnav resistant thiab lub neej ntev.

Ob Chav Nqus Degassing Zones

Nrog ob lub tshuab nqus tsev degassing zones, volatile xws li micro-molecules thiab ya raws yuav raug tshem tawm efficiency los txhim kho qhov zoo ntawm granules, tshwj xeeb tshaj yog haum rau cov khoom hnyav.

Phaj hom screen changer

Phaj hom lim yog ua nyob rau hauv ib tug nruam hom nrog ob lim daim hlau.Muaj tsawg kawg yog ib lub lim dej ua haujlwm thaum lub vijtsam hloov pauv.Ring-zoo li lub tshuab cua sov kom zoo ib yam thiab ruaj khov cua sov

Tsis-stop Piston Hom Lim

1.A ib txwm-phaj / piston ob lub chaw nres tsheb hloov pauv lossis tsis nres ob lub phaj / piston plaub-chaw nres tsheb tuaj yeem ntsia tau rau ntawm lub taub hau ntawm extruder los nthuav qhia kev ua haujlwm tseem ceeb.
2.Long screen lifetime, txo qhov screen hloov zaus: Ntev lim lub neej vim muaj cov lim loj.
3. Ib qho yooj yim rau siv thiab tsis nres hom: yooj yim thiab ceev npo hloov thiab tsis tas yuav tsum nres lub tshuab khiav.
4.Cov nqi lag luam tsawg heev.

Vertical water nplhaib granulation system

1.Kev kho tus kheej pelletiziin lub taub hau rau qhov zoo tshaj plaws granulate quolity thiab ntev uptime ua tsaug rau tsis tu ncua kho hniav oressure.
2. RPM ntawm rotatory hniav yog tsis siv neeg raws li yaj extruding siab.
3.Easy thiab ceev ceev pelletizer hniav changeover, tsis muaj kev hloov ua hauj lwm txuag lub sij hawm.

Kab rov tav dej nplhaib granulation system

Kev vibration qhuav

1.Advanced dewatering vibration sieve combing nrog kab rov tav hom centrifugal dewatering tam sim no kev ua haujlwm siab qhuav pellets thiab qis zog noj.
2. Sib dhos sieves: Cov sieves tau teeb tsa thiab kho los ntawm cov ntsia hlau tsis yog vuam, yog li koj tuaj yeem hloov cov sieves yooj yim yav tom ntej.
